DS7104HGHI-F1
Nouveau
l Support H.264+/H.264 video compression
l Support HDTVI/AHD/CVI/CVBS/IP video input
l Up to 4-ch 960p IP camera input for DS-7104HGHI-F1, up to 8/16-ch 1080p IP camera input for DS-7108/7116HGHI-F1
l Max. 1200 m for 720p HDTVI signal
Attention : dernières pièces disponibles !
Date de disponibilité:

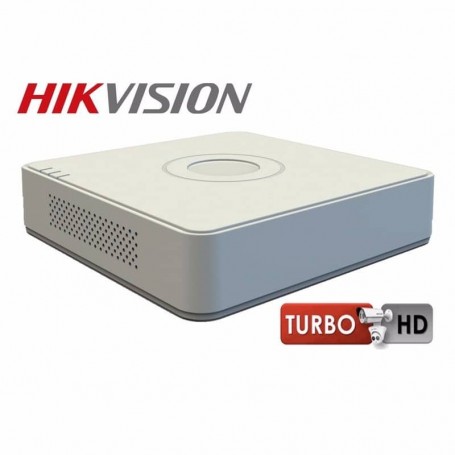

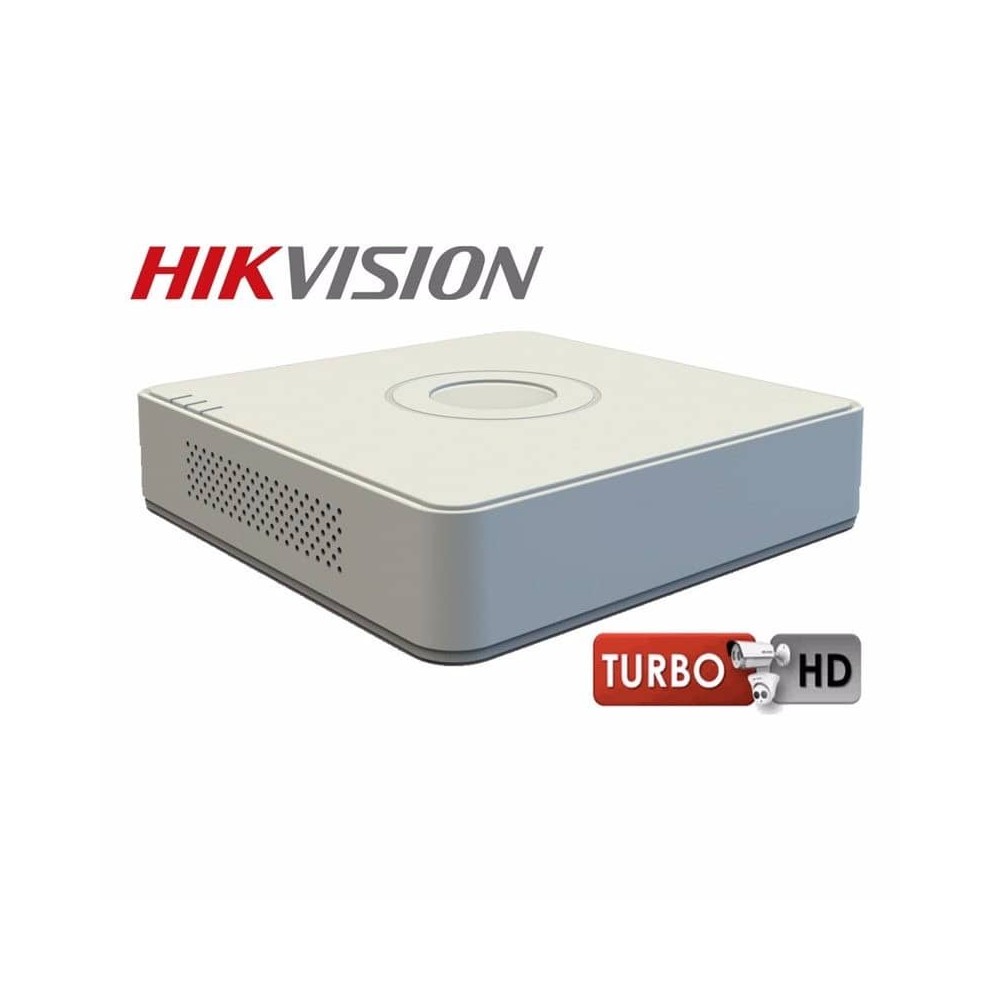

DVR HIKVISION 720 P 16 CHANNEL
l Support H.264+/H.264 video compression
l Support HDTVI/AHD/CVI/CVBS/IP video input
l Up to 4-ch 960p IP camera input for DS-7104HGHI-F1, up to 8/16-ch 1080p IP camera input for DS-7108/7116HGHI-F1
l Max. 1200 m for 720p HDTVI signal
Destinataire :
* Champs requis
OU Annuler
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.264,H.264+ | |
| Analog Video Input: | 16-ch | |
| Analog and HD-TVI video input: | 16-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| IP Video Input: | 2-ch (up to 18-ch) | |
| IP Video Input Resolution: | Up to 2 MP resolution | |
| Audio Compression: | G.711u | |
| Two-way Audio: | 1-ch RCA(2.0Vp-p, 1kΩ) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Encoding resolution: | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF |
|
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 4CIF/2CIF@6fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps ~ 4 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 6 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interfaces | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 20 W | |
| Working Temperature: | -10 ºC to +55 ºC (14 ºF to 131 ºF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) | |
| Weight: | ≤ 1.2 kg (2.6 lb) | |
